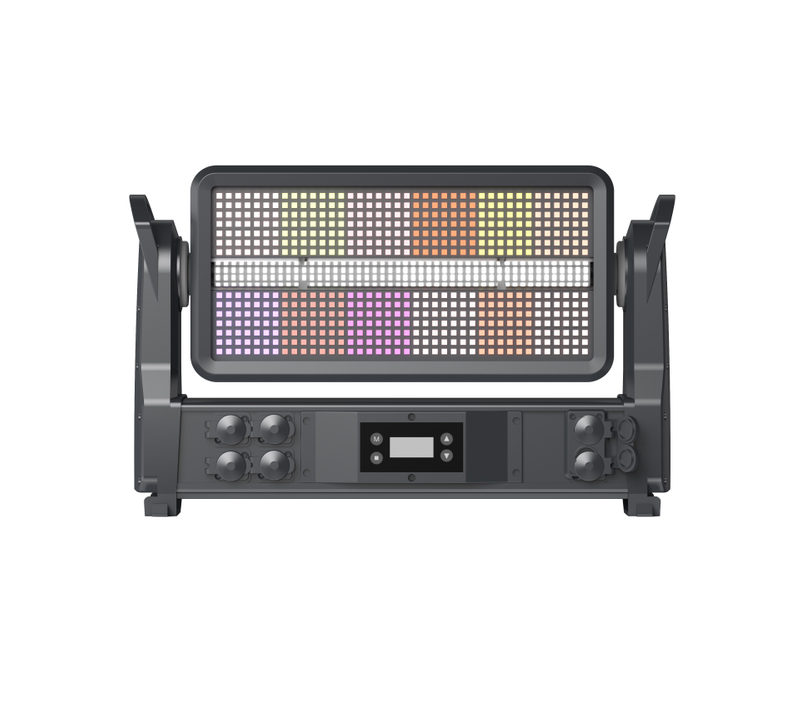

DS-109
DS
DS-109
DMX512/ WDMX
OUTDOOR USE
RGBW
1000W
185degree
560x RGB 3in1 LEDs 144x5W 6500K LEDs
23CH / 14CH / 68CH
2years
12.5kg
120-240V
Specifications:
•LED Count: 560
•LED Colors: RGB
•LED Segments: 12 (2 x 6)
•Strobe Tube LEDs
•LED Type: 3535 5W 6500K LEDs
•LED Count: 144
•LED Colors: Cool-White
•LED Segments: 12
•Movement Resolution:
•8-16 Bit Position
•Feedback: yes Tilt(Degrees): 185°
•Control Modes:23CH / 14CH / 68CH
•Display: Illuminated graphic LCD
•Protocol: USITT DMX-512, RDM
•RDM: Bidirectional communication
•Wireless DMX: 2.4 GHz W-DMX™ (optional)
•Cooling: Temperature controlled, overheating protection Effects
•Dimmer: 0-100%
•Electronic Shutter:electronic, max. 20 Hz Internal
•Effects: LED Macro Effects
•Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
•Power Input: Seetronic powerCON TRUE1 In/Out
•Mains voltage: 100-240V AC / 50-60Hz
•Power: 1000W
•Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating
•Position: any
•Standing: Rubber feet
•Omega-Bracket
•Safety wire attachment: foldout eyelets
•Single fixture: cardboard (inner and outer cartons)
•Tourpack: 4-way Flight Case
•Standard colors: black
•Length: 502 mm / 119.8 in
•Width: 137 mm / 5.4 in
•Height (head horizontal): 326 mm / 12.8 in
•N.W: 11.2 kg
•G.W: 13.5 kg
Specifications:
•LED Count: 560
•LED Colors: RGB
•LED Segments: 12 (2 x 6)
•Strobe Tube LEDs
•LED Type: 3535 5W 6500K LEDs
•LED Count: 144
•LED Colors: Cool-White
•LED Segments: 12
•Movement Resolution:
•8-16 Bit Position
•Feedback: yes Tilt(Degrees): 185°
•Control Modes:23CH / 14CH / 68CH
•Display: Illuminated graphic LCD
•Protocol: USITT DMX-512, RDM
•RDM: Bidirectional communication
•Wireless DMX: 2.4 GHz W-DMX™ (optional)
•Cooling: Temperature controlled, overheating protection Effects
•Dimmer: 0-100%
•Electronic Shutter:electronic, max. 20 Hz Internal
•Effects: LED Macro Effects
•Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
•Power Input: Seetronic powerCON TRUE1 In/Out
•Mains voltage: 100-240V AC / 50-60Hz
•Power: 1000W
•Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating
•Position: any
•Standing: Rubber feet
•Omega-Bracket
•Safety wire attachment: foldout eyelets
•Single fixture: cardboard (inner and outer cartons)
•Tourpack: 4-way Flight Case
•Standard colors: black
•Length: 502 mm / 119.8 in
•Width: 137 mm / 5.4 in
•Height (head horizontal): 326 mm / 12.8 in
•N.W: 11.2 kg
•G.W: 13.5 kg
