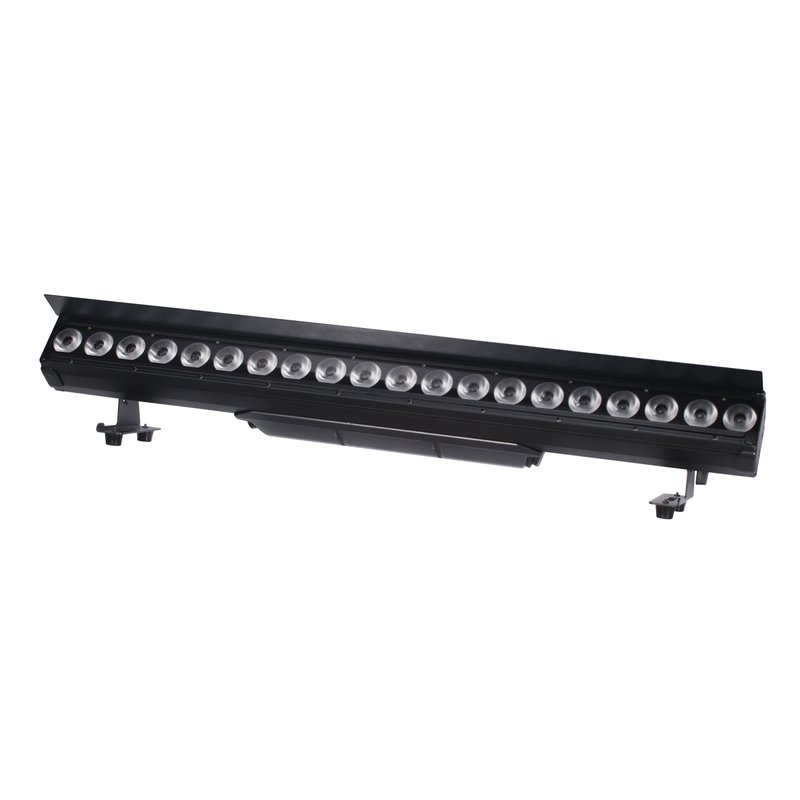

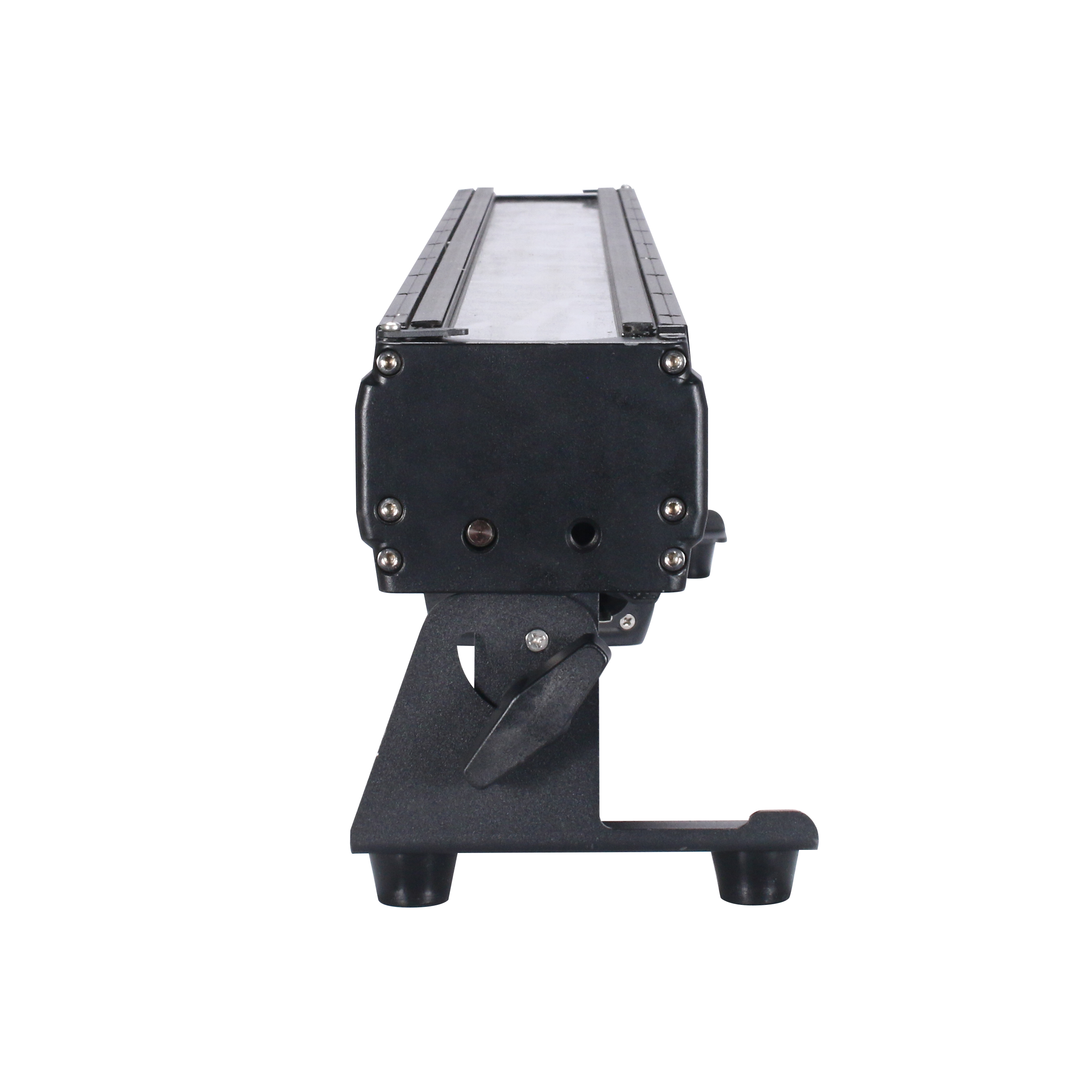

20x15W LED Pixel Bar Light

Availability:
Quantity:
  • DS-1220
  • DS
  • DS-1220
  • 20x15W RGBW 4 in 1
  • 11/27/80/91 DMX channels
  • 6°,8°,12°,15°,25°,45° optional beam angle
  • 0-100%
  • RGBW 16bit color mixing
  • IP65
  • 9.5KG
  • 120-240V 50-60HZ
  • 2 years
  • 1004x95x130mm(LxWxH)

Features & Specifications:



•AC90-240V, 50/60HZ

•400W power consumption

•20 x 15W RGBW 4IN1 LEDs

•50,000 hours expected lifetime

•6°,8°,12°,15°,25°,45° optional beam angle


•Each LED can be controlled individually

•DMX512, RDM, Master-Slave, Auto

•11/27/80/91 DMX channels

•0-100% 8/16bit linear dimming

•1-20 times/second strobe


•Cast aluminum body, black housing

•IP65 Level

•2 x two quarter-turn locking points for two Omega brackets

•Bottom mount for safety wire

•Heat sink cooling system

•IP65 PowerCON True1 in and out

•IP65 DMX in and out

•Size and Weight:

•Light size: 1004x95x130mm(LxWxH)

•Light Net Weight: 9.5KG

•Package size(2in1): 1270x320x220mm

•Gross weight(2in1): 22.5KG, with frost lens, hooks, vertical holders, omage clamps, brackets.
