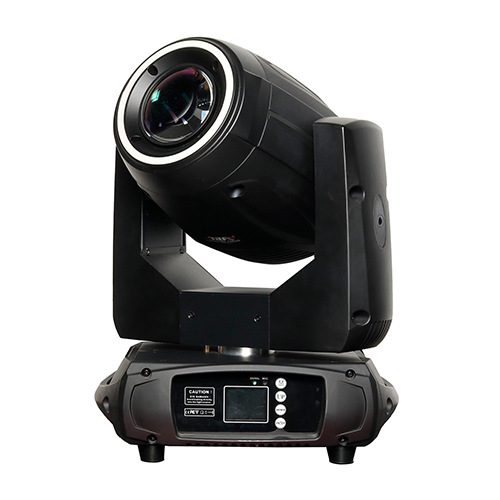

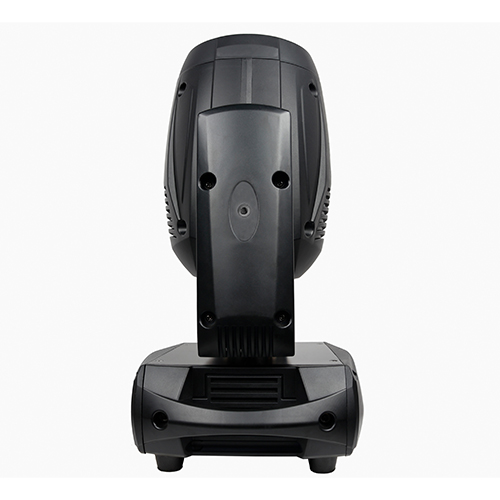

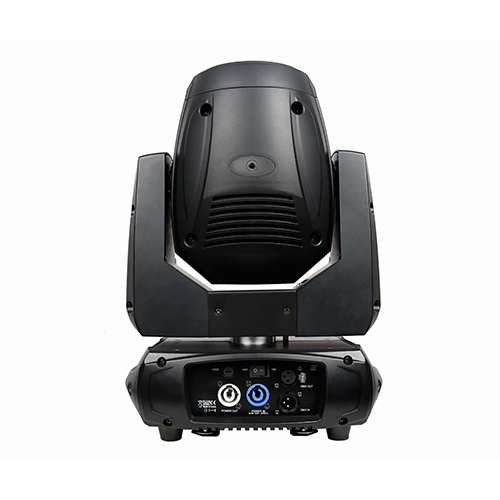

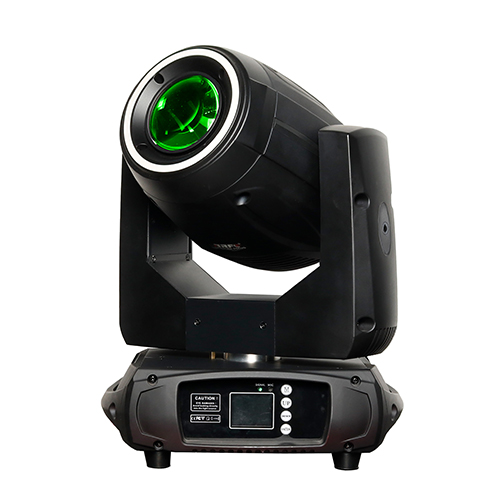

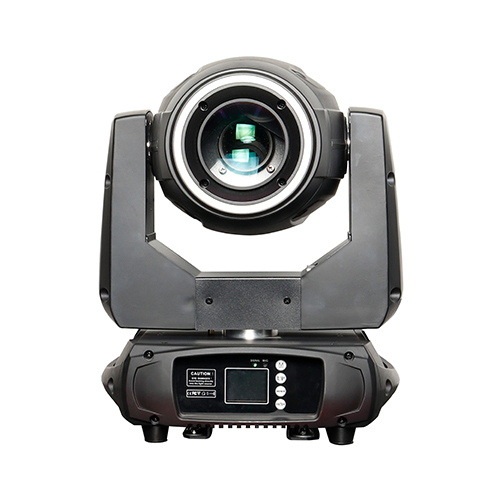

200W LED Moving Head Spot

•Modular 200W white LED 7500K,50000 hours life span.

•Fan cooling system

•-35-45°C max ambient temperature

•Constant temperature readout and management function.

•Input Voltage:AC90-260V 50/60Hz

•Protection Rating:IP 20

•Power Consumption: 250W

•Anti-reflection lenses

•Dimensions:308*221*434(mm)

•No need for adjustment of reflector or lamp

•Packing Dimensions:350*245*600 (mm)

•Dual flag mechanical dimming system

•Net Weight:10.5kg

•20T/sec high speed shutter/strobe effect with variable

•Gross Weight:12.0kg

•0-100% Linear LED shutter

•Frost filter available

•Zoom range:2.5°~14°Beam /Spot application;

•Motorized focus from near to far(2.5m-30m)

•14°-36°Wash application

•Linear motorized Zoom

•Improved optics and flat beam field

•Automatic Pan/Tilt position correction and automatic

•No need for adjustment of reflector or lamp

•Pan/Tilt mechanical lock function

•Anti-reflection 136mm front lenses

•3-facet prism with variable speed and direction

•1.8' TFT LCD display (160*128pix)

•Display reversible for up side down application

•Control Signal:DMx512,master-slave and sound

•Vector mode with blackout MIB function

 activated or auto operation (8 built-in programs)

•Electronic ballast and power supply

•Control Channel:22/24/32 CH

•DMX channels USITT DMX-512

•Power con IN/OUT

•DMX recorder and function integrated

•3-Pin XLR connectors IN/OUT

•Lamp using time readable on the display

•55dB at 3'dB rating

•630* /540°/360" PAN and 270°/180°/90" TILT movement

•2*1/4 turn fastening Omega clamps

•Smooth and precise resolution for PAN/TILT movement

•Scan position memory,auto preposition after

•Colors Wheel&Gobos Wheel:

•1 Color wheel with 9 colors plus open.

•1Static gobo wheel with 12 gobos plus open

•1Rotating gobo wheel with 6 gobos plus open
