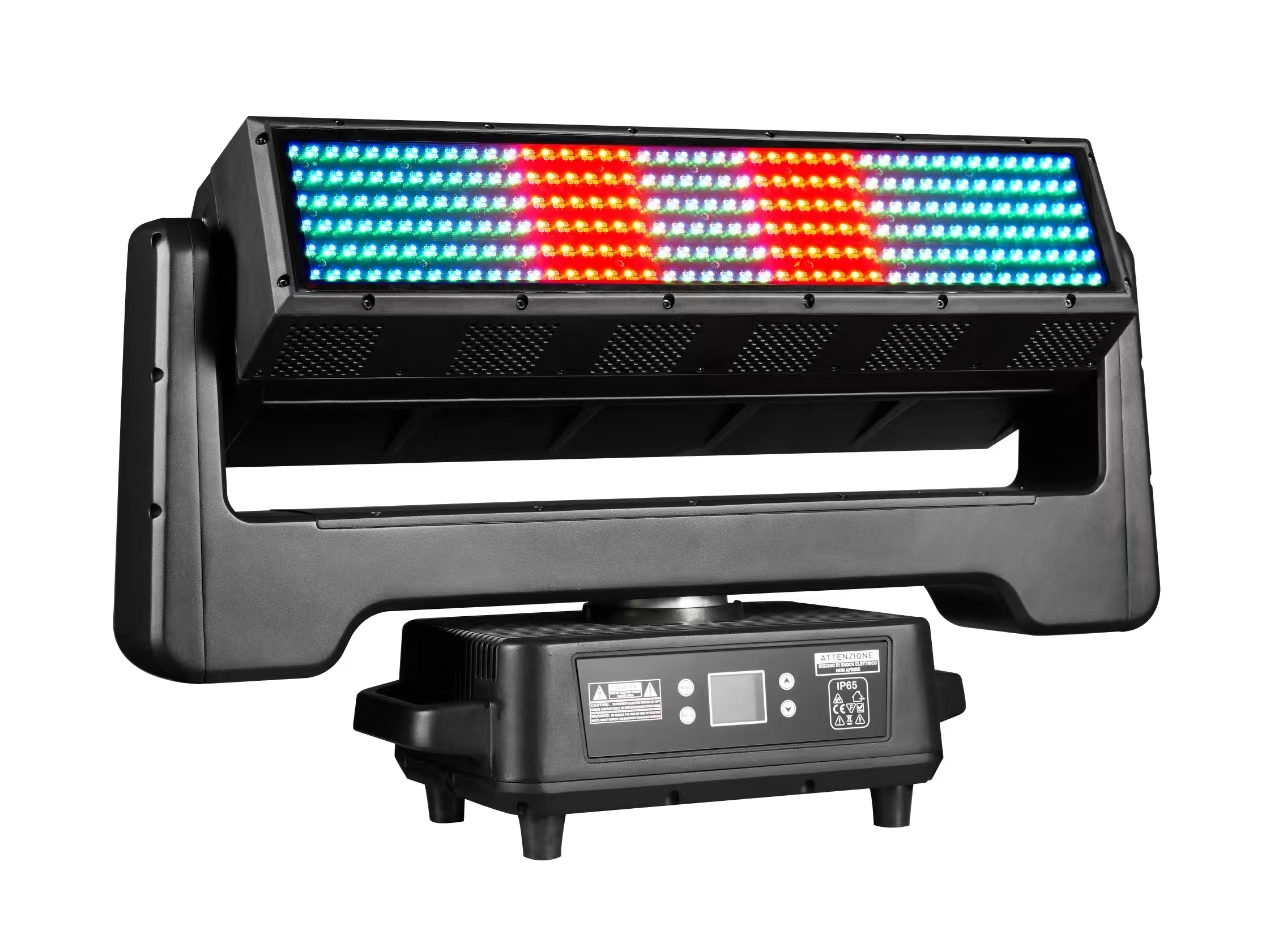

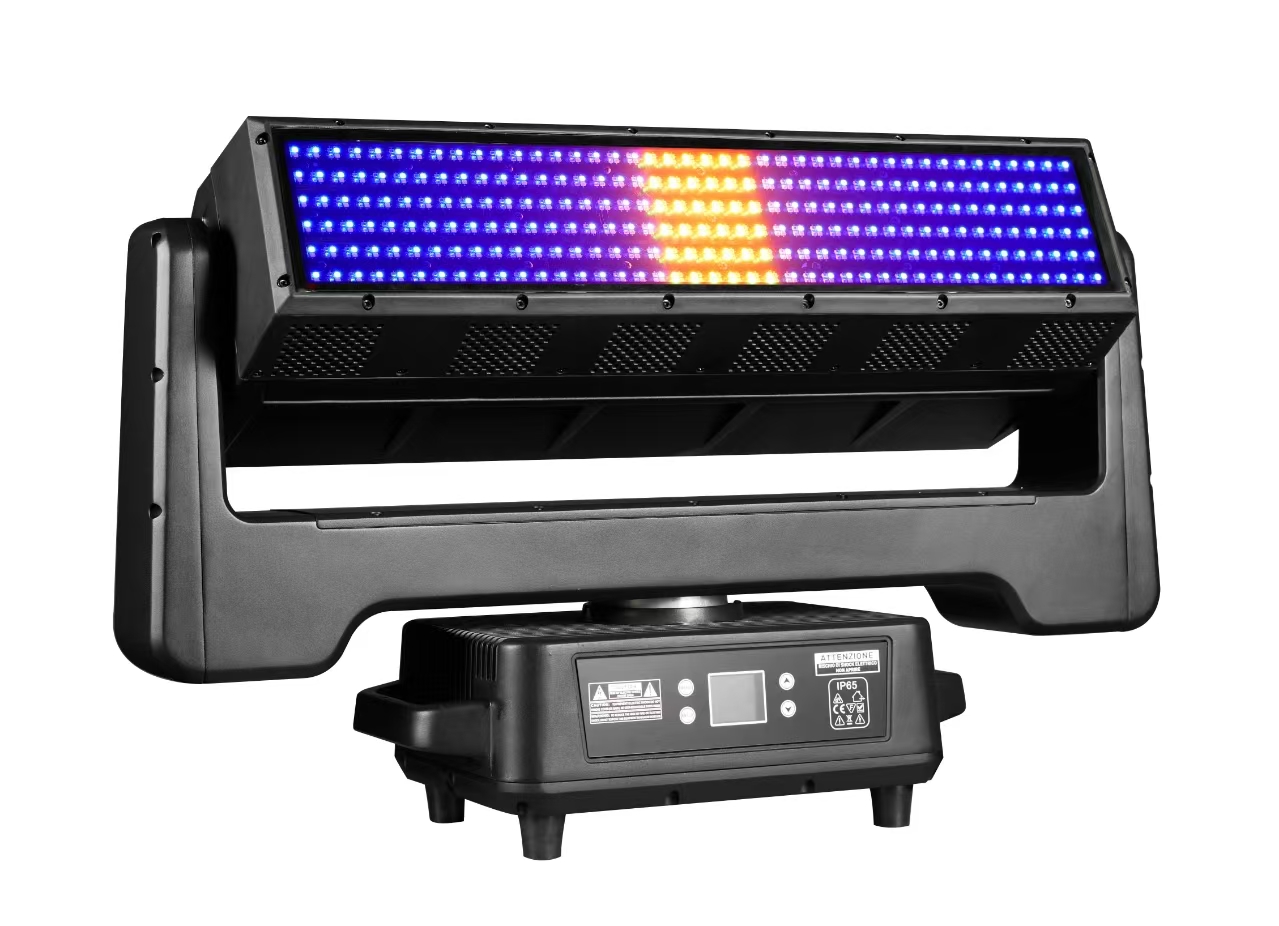

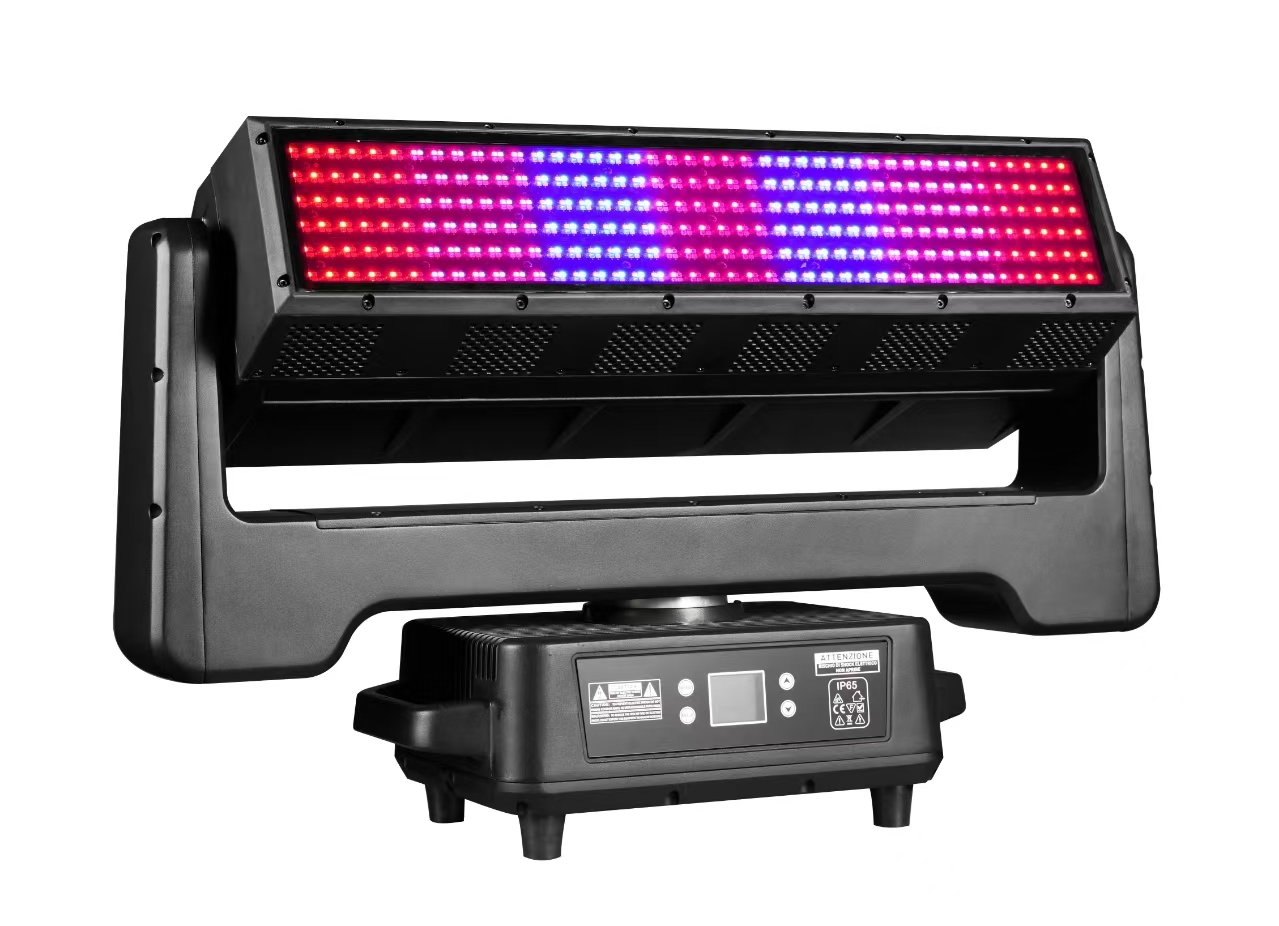

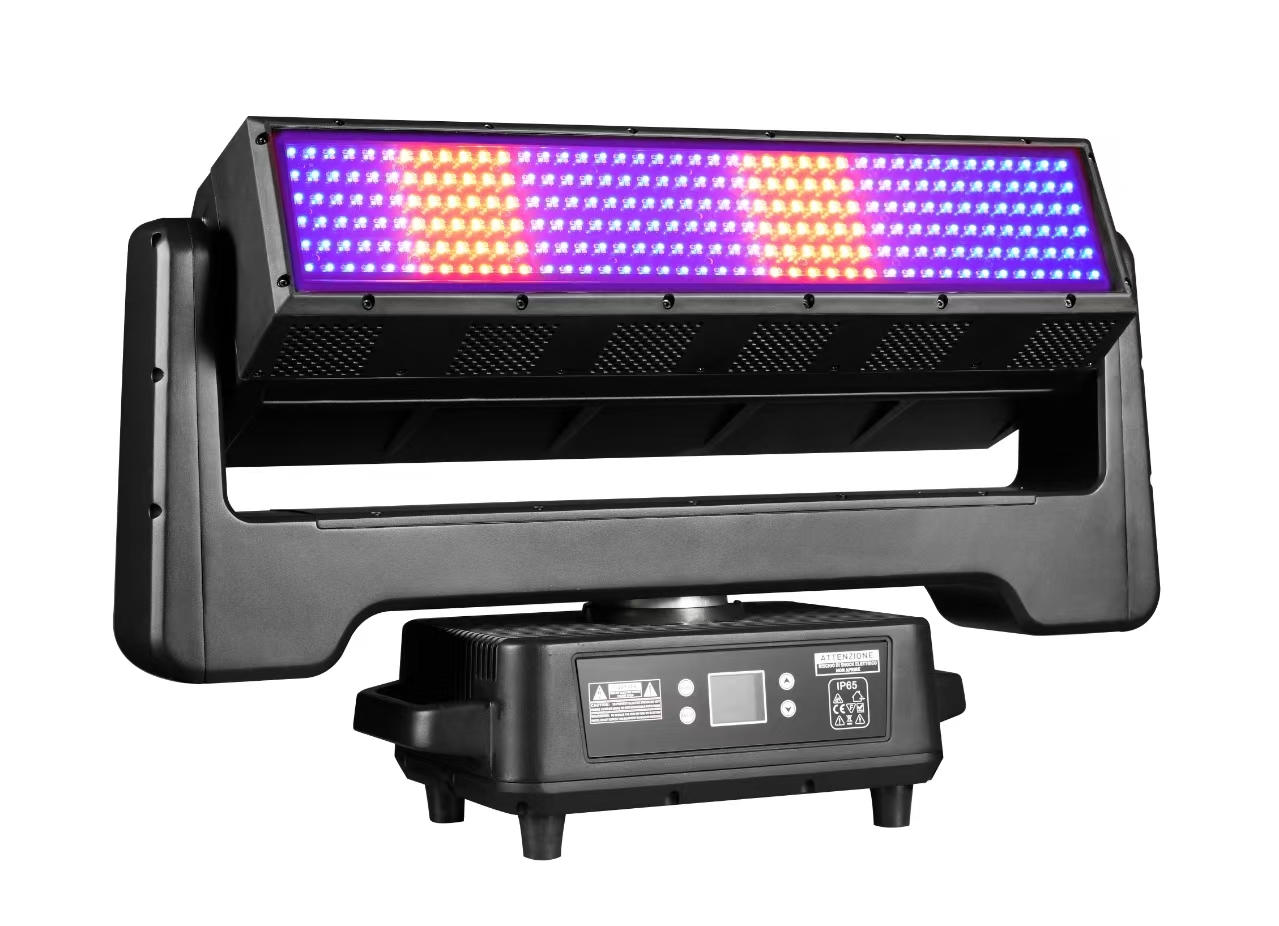

7x60W Alligator IP65 Infinity movement

●Light source Front panel ：RGBW，420W； Front panel ：WW+CW，280W； Back panel ：RGBW，700W；

●Temperature Front : W:7300K±100K; WW:2700± 100K; CW:8000K±100K ; Back W : 3200K ± 100K

●adjustable color temperature : 2800 to 8000 K

●Whole optical output Front small angle : total length : 7600 meters, total length : 570 meters ;

●G :1400Lm； B:250Lm； Width : 1800Lm ; RGBW:3700Lm

●WW :1680Lm； Clockwise : 2200Lm

●Front end large angle : total length : 9600 meters, total length : 920 meters ;

 ●G:2200Lm； B:390Lm； Width : 2900Lm ; RGBW:5800Lm

●WW :1680Lm； Clockwise : 2200Lm

●Back: Total :  18000Lm ; R:2500Lm； G:6600Lm； B :1200Lm； Width : 8100Lm

●illuminance Front : Small angle total : 52000Lux@3M; Large angle ALL : 2100Lux@3 M; Back ALL: 800Lux@3M

●Rendering Index Ra≥68

●DUV 0.0001-0.009

●Dominant

Wavelength Front R: 620nm； G:526nm； B: 453mm Back R: 623nm； G:526nm； B: 457 nanometre

●TM-30-15rg/rf 98/83

●TLCI 70

●Light source lifespan 20000 hours

●Beam angle Frond ：3 ° ~ 37 °   Back ：70 °.

●Flood angle Frond ：4 ° ~ 51 °   Back ：124 °.

●Pan Infinite rotation

●Tilt Infinite rotation

●Color System Front : RGBW+WW+CW color mixing ; Back: RGBW color mixing

●Zoom Beam Angle 3 ° – 37 °

●Strobe 0～30Hz

●Dimming 4 dimming curves, 0 – 100% Linear Dimmer

●Input voltage 200-240VAC，50-60Hz

●Power Dynamic : 920W@230V Static : 910W@230V Theoretical power of flicker: 1500W@230V

●Connections 3-pin DMX signal socket input/output, maximum connection quantity of 32 units, Art Net

●Consumption 0.96@230V

●Temperature 0～45 °

●Power supply 200-240VAC，50-60Hz，900W peak power 1800W

●Protection : IP65

●Control mode DMX512/RDM/Art Net

●DMX CH 26CH/50CH/84CH/98CH

●Size Product size ：755x241x490mm

●Weight N.W：28.5kg
