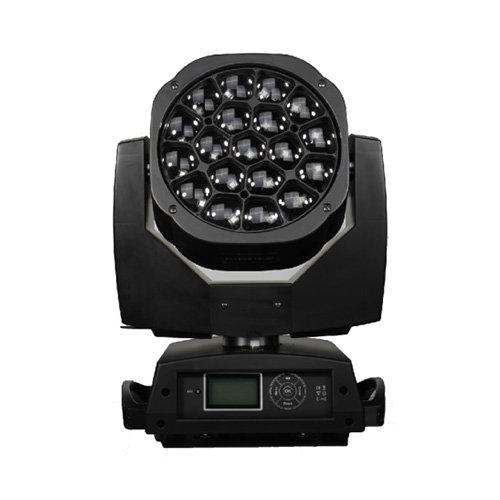

19x15W LED Moving Head B-EYE K10

Quantity:
  • DS-54
  • DS
  • DS-54
  • 19x15W 4 in 1 B-EYE
  • IP22
  • 450W
  • 19.5kg
  • Carton or Flightcase
  • 2 years
  • 21/35/78/92/97 DMX channels USITT DMX-512
  • 0-100%
  • 4°-60°
  • 120-240V 50-60Hz
Features:

•19*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
• 50000 hours life span and low power consumption
• Each color and each LED controllable individually
• 8/16 bit smooth and precise resolution for PAN/TILT movement
• Scan position memory, auto reposition after unexpected movement
• Specific high precision optic lens
• Variable direction rotating front lens
• 4°-60°Smooth electronic linear zoom
• Brilliant hard beam effects at 4°
• Pure and even wash coverage effects at 60°
• Petal-like micro beam effects
• Pixel patterning macro effects
• Built-in running programs
• Built-in color and graphic effect macros
• 0-100% linear LED dimmer
• 1-25T/sec high speed LED shutter/strobe effect with variable speed
• Preset variable/random strobe and dimming pulse effect
• 21/35/78/92/97 DMX channels USITT DMX-512
• DMX512, master-slave, and sound activated controllable or auto operation
• DMX recorder and edit function integrated
• High resolution graphic LCD display
• POWERCON connector IN/OUT
• 3-pin XLR connectors IN/OUT
• Aluminium structure with die-cast plastic cover
• Two side handles for transportation
• PAN lock for transport and maintenance
• High efficiency low noise cooling system
• Constant temperature readout and management function
• 45°C max ambient temperature
• IP20 protection rating
• 55dB at 3’dB rating
• 2*1/4 turn fastening Omega clamp
• 1*Safety attachment point

Specifications:

• Voltage:AC90-260V 50/60Hz
• LEDs:19*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
• DMX Mode: DMX512, master-slave and sound activated or auto operation
• Channels: 21/35/78/92/97 DMX channels USITT DMX-512
• Watts: 450W
• Product Size:253(D)*358(W)*494(H)mm
• Packing Size:333(D)*438(W)*564(H)mm
• Net Weight:15kg
• Gross Weight:17kg
