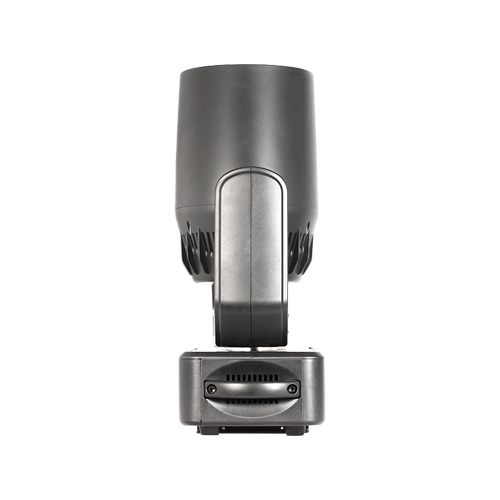

200W LED Beam Moving Head

200W LED Resource
2 degree Beam
Availability:
Quantity:
  • DS-701

  • DS

  • DS-701

  • 200W LED Beam Moving Head

  • 18.6kg

  • 120W

  • 2 years

  • 120-240V 50-60Hz

  • Carton or Flightcase

  • 27/36/50/266CH Channels

  • 0-100%

  • 2 degree

  • IP22



Features & Specifications:
Rate Voltage:AC100-240V, 50-60Hz
Power Consumption:280W
LED Qty:1x120W White LED
        162x0.2W RGB LEDs
LED color temperature: 7000K

Beam Angle: 2°

IP Level:   IP20

5 DMX channel modes: 27/36/50/266CH/DMX20+ArtNet216 international

 standard DMX512 channels

•Dimensions: 330x223x555mm

Packing Size: 620x430x320mm
Net Weight: 16.4KG
3pin&5 pin XLR input and 3 pin & 5 pin XLR output
Artnet: RJ45 input/output
Powercon input/output
3 kinds of control model:DMX512, Artnet, Sound, Master/Slave
Setting and addressing:RDM
Software update: Update via DMX link
Black platic
2.4 inch TFT color display screen
Display screen can be 180degree;Reversible to fit the installation in different place
Indoor working temperature: -20°C~+40°C
Dimemer: 0-100% and 16 bit dimming
Refresh rate:3000Hz
16 bit  pan/tilt fine
Smooth and accurate locating
Pan: 540 °or 640°Tilt: 270°rotating
Static gobo wheel: 21Gobo+open, two oscillation gobo effect areas, goboshake,
 gobo continuous bi-dierctional rotating

Color Wheel: 14 colors+open, Split color,cotinous bi-directional rotating
LED ring with 162pcs 02W RGB bring dynamic effect and this effect is combinable
Strobe effect: Plus Random, Ramp up Random, Ramp down, Random, Random strobe,
 Strobe break effect,5s.....1s, Strobe 0-20Hz.

Color effect fliter
Frost fliter for wash effect

Prism: Prism: One 48 prism and one 8 prism, which can be rotated forward and backward

•4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、 S-Curve Dimmer

•LED dimming mode: LED mode and halogen lamp mode

Impressive 91,000Lux at 5 meter distance and 2°bea angle

Fan cooling(fan speed up as per termperature change)
