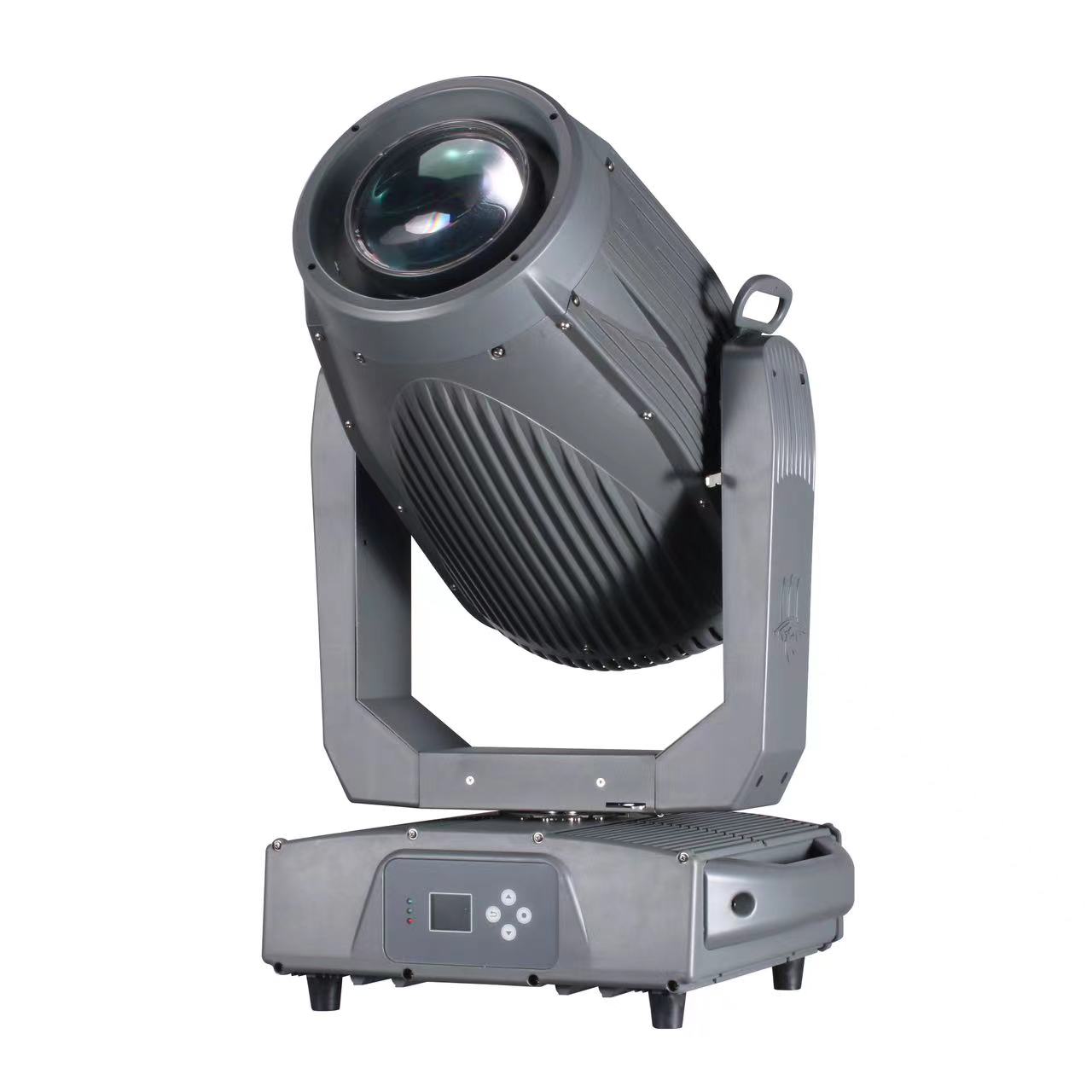

700W IP65 LED Moving Head CMY CTO

•Focus: Linear electric focus

•Dimming: Smooth dimming without flickering

•Light source specification: 700W LED,8000K

•LED life: 20000 hours

•Stroboscope:Independent stroboscope,0.5-20times/second adjustable

•The color/pattern/effect

•Color plate: 5 color plates + white light

•CTO: independent entry CTO

•CMY: Independent entry type CMY, linear CMY color switching, infinite color mixing

•Prism: 4 prism, bidirectional rotation, with positioning function

•Beam Angle: 2° to 50 °

•Fixed pattern plate: 8 can be two-way dithering, animation, water effect

•A rotating pattern plate: 6 pattern pieces + white circle

•Control mode: DMX 512, self - walking, master - slave machine

•Rotation Angle: X axis 540 degrees, Y axis 275 degrees can be automatically corrected positioning

•Channels: 26 channels

•Heat dissipation system: large high quality copper tube fully closed radiator, gyroscope automatically adjust the heat dissipation system, effectively control the temperature of the lamp

•Dehumidification system: intelligent dehumidification and fog removal system, effectively ensure the life of the lamp

•Positioning technology: magnetic coding positioning system is adopted, and magnetic devices are used to replace the traditional •Hall positioning system, with higher precision and reliable performance

•Material: International die-cast aluminum + aviation die-cast magnesium alloy high-end material shell

•Lamp body size: 484*376*805mm

•Carton size: 920*585*495mm

•Net weight: 32KG

•Gross weight: 34KG

•Protection level: IP66

• With Flodable Clamps
