Specifications

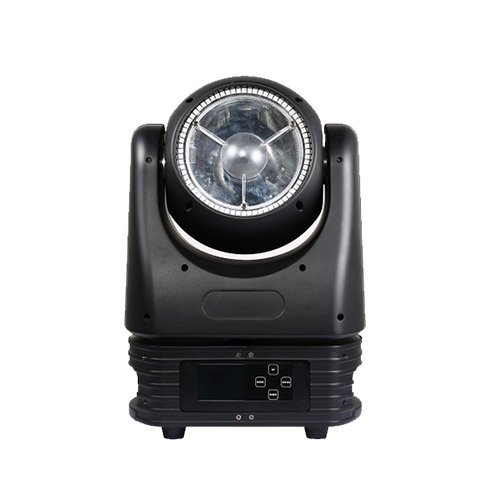

•OSRAM 60W Mini Moving Head
Rated Voltage:AC100V～240V 50-60HZ
•Rated Power:120W
•LED Qty:1x60W RGBW LED(Beam)
72x0.2W RGB LEDs(Ring)
•LED Drive Current: 4.5A(Beam LED)
•Beam Angle: 2°
•IP Class: IP20
•DMX Mode:4/19/43/115CH
•Packing Size:465x340x310mm
•Net weight:8.1Kg
•Gross weight:9.4Kg
Product Features
•3 Pin XLR input and 3 Pin XLR output.
•ArtNet: RJ45 input&output
•PowerCon:Power input&output
•3 kinds of control model: DMX512,ArtNet,Master/slave
•Setting and Addressing:RDM
•Software update:Update via DMX link
•Housing:Black platic.
•2.4inch TFT color display screen
•High anti-interference 4 touch button
•Refresh rate:1000Hz.
•4Kinds of DMX modes: 4/19/43/115CH.
•Dimmer:0-100%and16bit dimming
•Dimmer mode: 2 kinds.
•4 kinds of curve dimmer:Linear Dimmer、Square Dimmer、I. Square Dimmer、S-Curve
Dimmer
•Display board can be 180°in turn，it can be fitted in different setting
•Strobe effect:Plus Random、Ramp up Random、Ramp down Random、Random strobe、
•Strobe Break Effect,5s......1s、Strobe 0-20Hz
•Pan/Tilt
•16bit pan/tilt fine
•Smooth and accurate locating
•Pan:540°;or640°;，Tilt:270°rotating
•Pan、Tilt high speed,infinite operation,and adjustable speed
•The scanning position can be memorable, and it will be reset automatically without
any expected operation
•Pan and Tilt correction functions
•Excellent color mixing effect and rainbow effect
•All colors can be dimmed
•Dimmer mode:two kinds of dimmer mode
•Special cooling system
•LED ring whit 72pcs 0.2W RGB bring dynamic effect and this effect is combinable
•Cooling system:fan cooling(Fan speed up as per temperature change)
•Operation temperature:-20°C～+40°C
