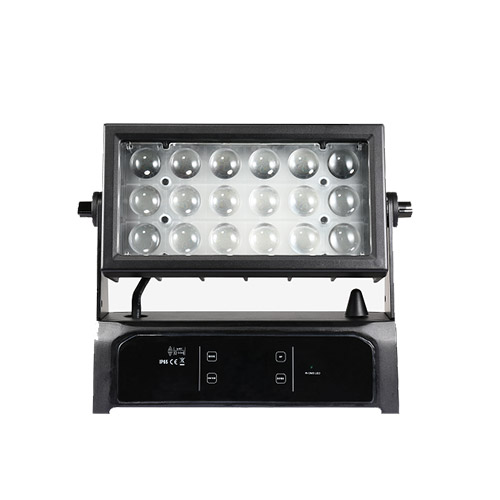

18x15W RDM Wireless Wall Washer Zoom

2.4G Wireless, IP65, Touch Screen, 15W RGBW LEDs, Small body with 13.5KG, Multi DMX modes, 4 dimming modes
  • DS-123
  • DS
  • DS-123
  • DMX512/ WDMX
  • Outdoor use
  • 2.4inches TFT display operation
  • 15W RGBW
  • Carton or Flightcase
  • 250
  • 6 DMX Modes:3/4_1/4_2/5_16_2/22_34CH
  • 4 kinds of curve dimmer
  • 7-58degree Beam Angle
  • 9.4kg

•Rated Voltage:AC100V~240V 50-60HZ
•Rated Power: 280W
•LED Qty:18x15W High power RGBW LEDs(Beam)
 42x0.2W RGB LEDs(Ground Colour)
•LED Drive Current: 1A
•Zoom Angle: 7-58°
•IP Class: IP65
•DMX Mode:3/4_1/4_2/5/16_1/16_2/22/34CH
•Packing Size:420x380x235 mm
•Net weight:9Kg
•Gross weight:10.7Kg
Product Features
•Dmx input:3 pin electronic J3F2C-W
•Dmx output:3 pin electronic K3F2C-W
•Power connection:electronic powerCON in(SAC3MPX)/ powerCON
•3 kinds of control model: DMX512,W-DMX,Master/slave
•2.4G Wireless DMX control
•Setting and Addressing:RDM
•Software update:Update via DMX link
•DMX function:Dimmer,Strobe,RGBW,Macro color,Color jump,Color
 fade,Rainbow,Auto Program choice,Auto speed,Curve dimmer
 select,Function setting
•Stand-alone mode: Color step,Color shade,Auto,Slave,Macro color,Static
 color setting, Rainbow,Auto program choice
•Housing color:Black
•2.4inch TFT color display screen
•Anti-interference button
•Refresh rate: 800Hz/1200Hz/2000Hz/3600Hz /25KHz optional .
•Operation temperature:-20°C ~+40°C.
•8 Kinds of DMX modes:3/4_1/4_2/5/16_1/16_2/22/34CH.
•Dimmer mode: 2 kinds
•4 kinds of curve dimmer:Linear Dimmer、Square Dimmer、I. Square Dimmer、
 S-Curve Dimmer
•Display board can be 180°in turn,it can be fitted in different setting
•Strobe effect:Plus Random、Ramp up Random、Ramp down Random、
 Random strobe、Strobe Break Effect,5s......1s、Strobe 0-20Hz.
•Perfect mixing color and rainbow effect
•Cooling system:fan cooling(Regular& Silent-speed)
