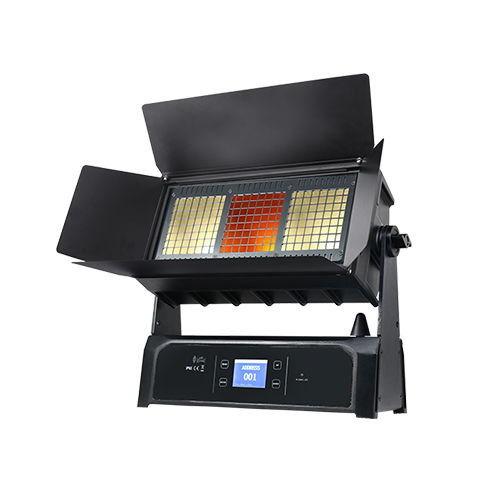

190W ARW LED Wall Wash

Availability:
Quantity:
  • DS-202

  • DS

  • DS-202

  • DMX512/ WDMX

  • Outdoor use

  • 2.4inches TFT display operation

  • Carton or Flightcase

  • 190W

  • 1/2/5/7/10CH

  • 4 kinds of curve dimmer

  • 45° Beam Angle

  • 9.7kg



 Specifications:
● Rate voltage:AC100V~240V,50-60HZ
● Rate power consumption:  190W
●  LED qty: 3x60W RGBW LEDs modules
●  LED drive current: 3A
● color temperature: 2700K±200(tungsten light:1200K)
● Beam angle: 45degree
● IP class: IP65
● DMX channel mode: 1/2/5/7/10CH
● Packaging size:420x380x235 mm
 Net weight: 9.7KG
 Gross weight:10.7KG


Product Features

● DMX input: 3-pin Seetronic J3F2C-W
● DMX output: 3-pin Seetronic K3F2C-W
● Power connection: Seetronic
 powerCON IN (SAC3MPX) / OUT (SAC3FPX)
Software upgrade: It is convenient and fast to update software through DMX signal wire
 3kinds of control model:DMX512、W-DMX、Master/Slave
Setting and addressing:RDM
Software update :Update via DMX link
2.4G wireless DMX control
DMX function:dimming、strobe,tungsten light effect,macro color,color jump,color shade,dimming curve choice
  function setup,,Auto-program choice,auto speed choice,function choice

Standalone mode:  Auto,slave, tungsten light effect , static colour setup,Auto-program choice
Housing: Aluminium
Housing color:Black
● 2.4inch TFT color display screen
● High anti-jamming four-button touch keys
● refresh rate: 800Hz/1200Hz/2000Hz/3600Hz optional
● operation temperature:-20°C~+40°C
●5DMX model:1/2/5/7/10CH
● dimming mode: 2 modes
● 4 kinds of dimming curve: Linear Dimmer、Square Dimmer、I. Square Dimmer、S-Curve Dimmer
●Strobe effect: Plus Random、Ramp up Random、Ramp down Random、Random strobe、
  Strobe Break Effect, 5s…..1s、Strobe0-20Hz
●cooling system:fan cooling(auto and silence working)
