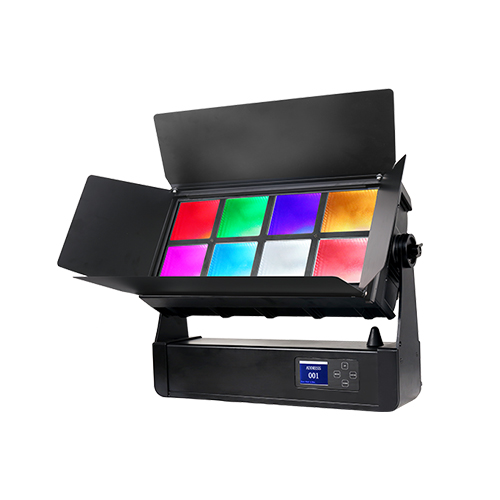

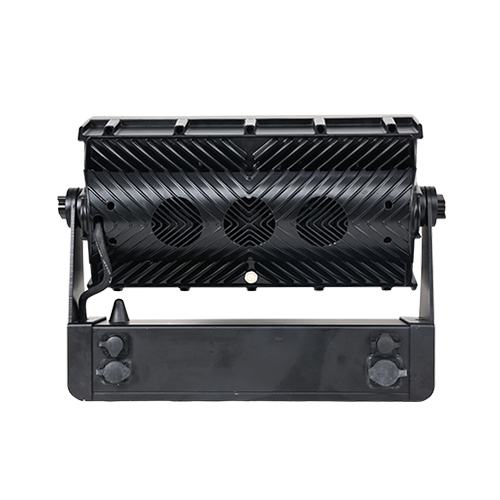

470W RGBW LED Wall Wash

Availability:
Quantity:
  • DS-204
  • DS
  • DS-204
  • DMX512/ WDMX
  • Outdoor use
  • 2.4inches TFT display operation
  • Carton or Flightcase
  • 470W
  • 3/4/6/18/34/50CH MODE
  • 4 kinds of curve dimmer
  • 45° Beam Angle
  • 13.5kg
  • IP65



Specifications:
●Rated Voltage:AC100V~240V 50-60HZ
●Rated Power:470W
●LED Qty:   8x60W RGBW LED
●LED drive current:1A
●Beam angle:45°
●IP Class:      IP65
●6 kinds of DMX mode:3/4/6/18/34/50CH
●Packing Size:585x220x425mm
●N.W:15kg      ●G.W:18kg


Product Features
DMX input3-pin Seetronic J3F2C-W
●DMX output 3-pin Seetronic K3F2C-W
●Power connect:Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)
●Setting and addressing:RDM
●Software update :Update via DMX link
●3 kinds control mode :DMX512、wireless DMX、Master-slave

●2.4G wireless DMX control
●DMX function:dimmer 、strobe 、RGBW、macro color ,
 color jumping、rainbow、Auto、Auto speed、dimmer curve selection、function setting
●Stand-alone mode:color jumping、Auto、Master-slave、macro、static color setting、rainbow、auto selection
●Housing material:aluminium alloy
●Housing color:black
●2.4 inch TFT display
 High Anti-interference four touch buttons
●Operating temperature:-20°C~+40°C

●6 kinds of  DMX mode :3/4/6/18/34/50 CH
●Dimmer:0-100% linear dimmer
●Dimmer mode : 2 kinds of
●Dimmer frequency selection:800/1200/2000/3600/25K Hz
●4 kinds of dimmer curveLinear Dimmer、Square Dimmer、I. Square Dimmer、S-Curve Dimmer
●Strobe effect :Pulse Random、Ramp up Random、Ramp down Random、Random strobe、
  Strobe Break Effect, 5s…..1s、Strobe0-20Hz
