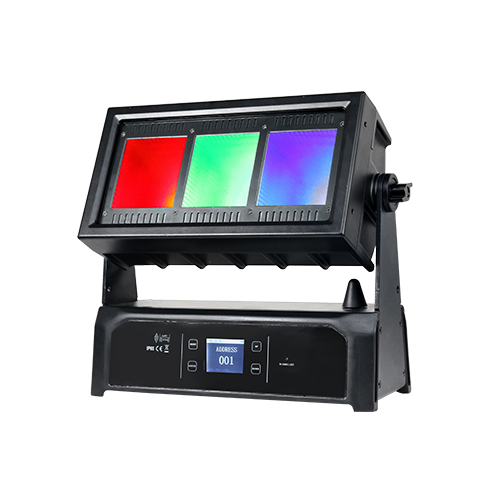

210W RGBW LED Wall Wash

Availability:
Quantity:
Inquire Add to Basket

  • DS-1125

  • DS

  • DS-1125

  • DMX512/ WDMX

  • Outdoor use

  • 2.4inches TFT display operation

  • Carton or Flightcase

  • 210w

  • 2/3_1/3_2/4/12/14/26CH

  • 4 kinds of curve dimmer

  • 45° Beam Angle

  • 9.4kg




Specifications:
 •Rated VoltageAC100V～240V 50-60HZ
 •Rated consumption:210W
 •LED Qty: 240W RGBW LED
 •LED drive current :750mA
 •Beam angle:45°
 •IP Class :IP65
 •DMX  mode :2/3_1/3_2/4/12/14/26CH
 •Packing Size:430x380x235mm
 •N.W:9.7KG
 •G.W:10.7KG

Product Features
 •DMX input:3-pin Seetronic J3F2C-W
 •DMX output :3-pin Seetronic K3F2C-W
 •Power connect:Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)
 •Setting and addressing:RDM
 •Software update :Update via DMX link
 •DMX function :dimmer 、strobe、RGBW、macro，color jumping 、color gradual changes、dimmer curve selection、function setting
 •Stand-alone：color jump、color gradual changes、Auto、Master-slave、Macro、static color setting 、Auto selection
 •Housing material：aluminium alloy
 •Housing color：black
 •1.3 inch OLED display
 •High anti-interference four touch buttons
 •Display board can be 180°overturn
 •Operating temperature：-20°C～+40°C
 •4 kinds of DMX mode：3CH/4CH/6/12CH mode
 •Dimmer :16bit
 •Dimmer mode ：2 kinds of
 •Dimmer frequency ：800/1200/2000/3600/25K Hz
 •Perfect color mixing effect
 •All colors can be total dimmer
 •Fan dissipation (the fan will change the speed with the temperature changes）
 •4 kinds of dimmer curve：Linear Dimmer、Square Dimmer、I. Square Dimmer、S-Curve Dimmer
 •Strobe effect ：Pulse Random、Ramp up Random、Ramp down Random、Random strobe、
 Strobe Break Effect, 5s…..1s、Strobe0-20Hz
