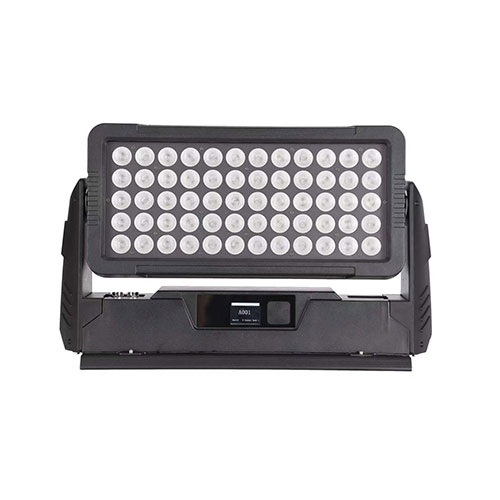

60x15W Outdoor LED Wall Washer

, IP65, 15W RGBW LEDs, Small body with 10KG, Multi DMX modes,
Availability:
Quantity:
  • DS--177
  • DS
  • DS-177
  • DMX512
  • Outdoor use
  • 10K5
  • 15W RGBW
  • Carton or Flightcase
  • 680w
  • 6CH / 6CH (CTC) / 8CH / 10CH (CTC)
  • 4 kinds of curve dimmer
  • 25°/35° Beam Angle
  • 2years


Specifications:

•LED Type: 60pcs 15W RGBW 4in1 LEDs
•600W Watts
•AC100-240V , 50/60Hz
•Control Modes: 6CH / 6CH (CTC) / 8CH / 10CH (CTC)
•Display: Blue LCD screen
•Protocol: USITT DMX-512,
•Cooling: Natural convection heat transfer+waterproof cooling fan
•Dimmer: 0-100% electronic
•Shutter: electronic, max. 20 Hz
•Color temperature filter: electronic, 2.000 K - 10.000 K
•Internal Effects: LED Macro Effects
•Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
•Power Input: Seetronic powerCON TRUE1 In/Out
•Maximum ambient temperature: -30°C -50°C
•working temperature: -25°C--50°C
•Mounting Options
•Standing: Body feet
•Hanging: Omega-Bracket
•Standard colors: black Housing
• IP65 Outdoor Level
•N.W: 15kg

Technical Features
•High performance colour LED fixture with low power consumption
•IP65 rating
•True LED alternative to traditional wash lights
•Eco-friendly and economical operation
•Easy mounting - no tools required
•Huge variety of saturated colors and a very bright light
•High applicability
•Patented RFID implemented interface and a standard built-in wireless DMX receiver
• Set-up is via an OLED graphic 5-button display
•Other features include: a simple menu structure; upgradeable software (via uploader cable)
• IP65 rating; standard 3/5-pin XLR for DMX in/out
•Cooling methods have been improved via rectangular heat-sinks,
 set-up and address procedures improved with the aid of internal diagnostics,
 and control procedures •implemented to ensure flicker-free fixtures
 •LED source life expectancy is 50,000 hours
