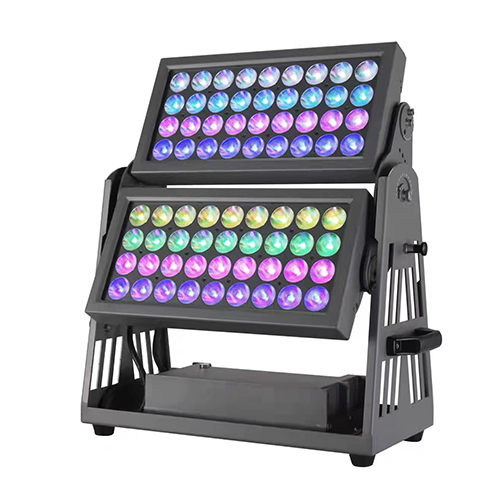

72x15W IP65 LED Wall Washer Light

Availability:
Quantity:
  • DS-137
  • DS
  • DS-137
  • 72PC 15W RGBW 4 IN 1
  • 600X485.6X2631mm
  • 33.5KG
  • 2 Years
  • Carton/Flightcase
  • 2CH/3CH/4CH/6CH/8CH/14CH/17CH/24CH/32CH
  • 1000W
  • 100-240V 50-60Hz
  • 0-100%
  • IP65

Specification:


•LED qty:72x15W RGBW 4in 1 LED,uniform and delicate color mixing effect

•9 DMX channel modes:2CH/3CH/4CH/6CH/8CH/14CH/17CH/24CH/32CH

•interational standard DMX-512 channel

•3 control modes:DMX512、W-DMX、Master-Salve

•Setting and addessing:RDM

•Dimmer:0-100% 16bit dimming which can control brightness change

 and closing of 4colors at the same time

•2.4G wireless DMX(reserved)

•Dimming way:4 kinds of dimming way

•LED refresh rate:800Hz/1200Hz/2000Hz/3600Hz /25000Hz optional

•4kinds of dimming curve:linear dimmer、exponential dimmer、logarithmic dimmer、S-Curve dimmer

•LEDs of each line can be controlled in 4colors

•Lens:43mm high intensity PMMA lens

•Beam angle:25°(10°,45°optional)

•AC100-240V 50/60HZ

•Power consumption:1020W

•Protection class

•Housing:Die-cast aluminium

•IP class:IP66

•DMX:waterproof cables with input and output

•Power connection:waterproof cables with power INPUT/ OUTPUT

•Operation temperature:-20°C~+40°C

•Packaging size:645x390x685mm

•Net weight: 28.5KG

•Gross weight:33.5KG
